Replacing Fender on the RV3

If you are facing issues with replacing and installing fender on your RV3, this blog post will be helpful. Following our step-by-step instructions will improve your efficiency and prevent any loopholes. You can also watch a video tutorial on YouTube.

Tools needed: Multi-function hex wrench, zip ties, scissors, 18mm wrench

Step 1: Remove the battery.

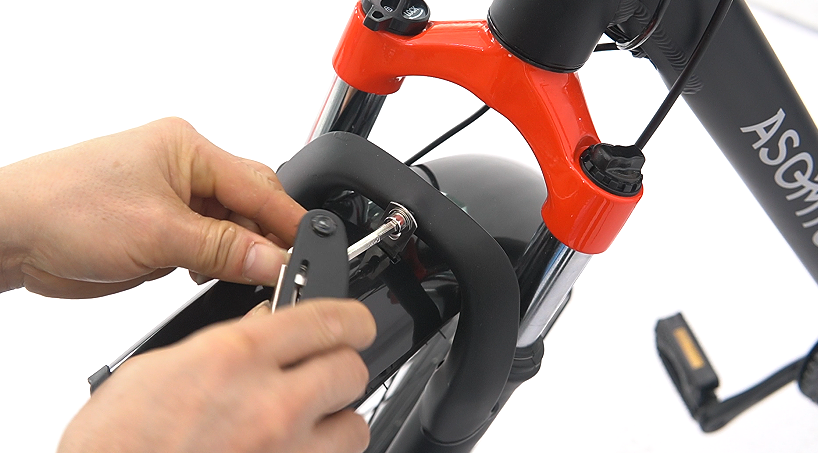

Step 2: Use the multi-function hex wrench to unscrew the screws on the left and right brackets of the front mudguard.

Step 3: Unscrew the screws on the upper part of the front fender and remove it.

Step 4: Take out the new front fender and install it.

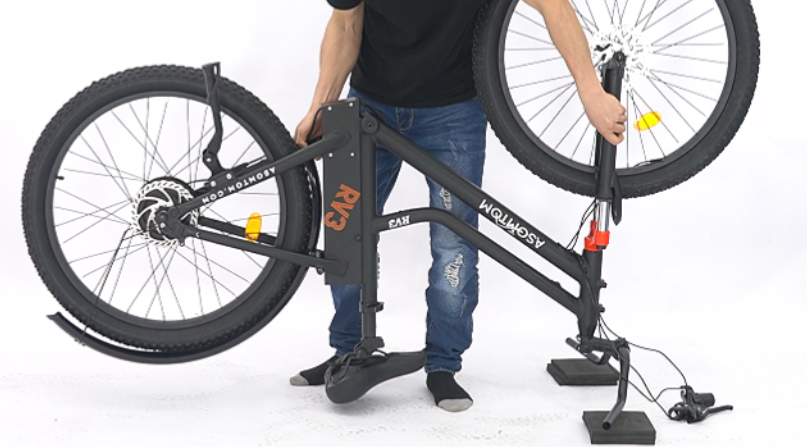

Step 5: Flip the bike over.

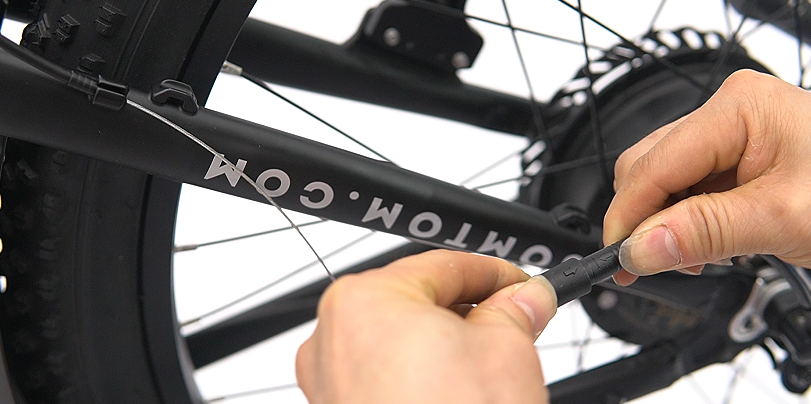

Step 6: Cut the zip ties securing the motor wires and disconnect the motor wires.

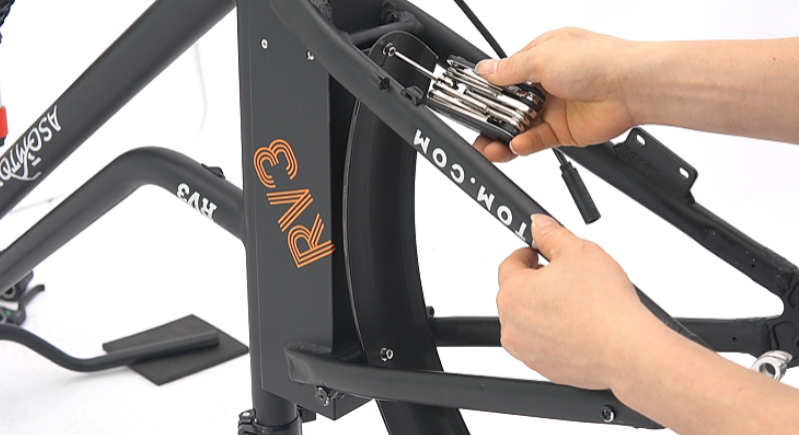

Step 7: Remove the protective frame.

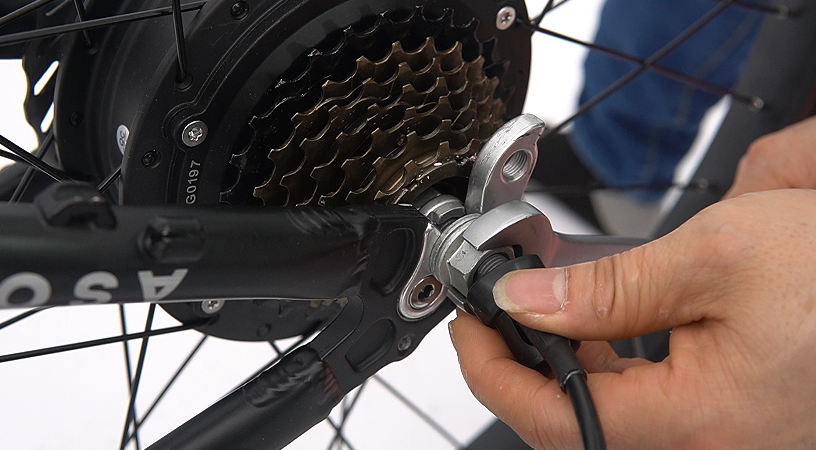

Step 8: Remove the left and right dust protection covers and use an 18mm wrench to unscrew the screws on the left and right.

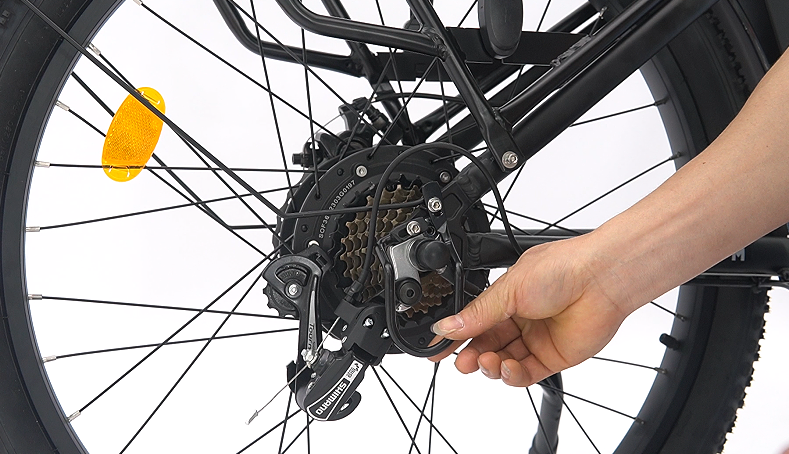

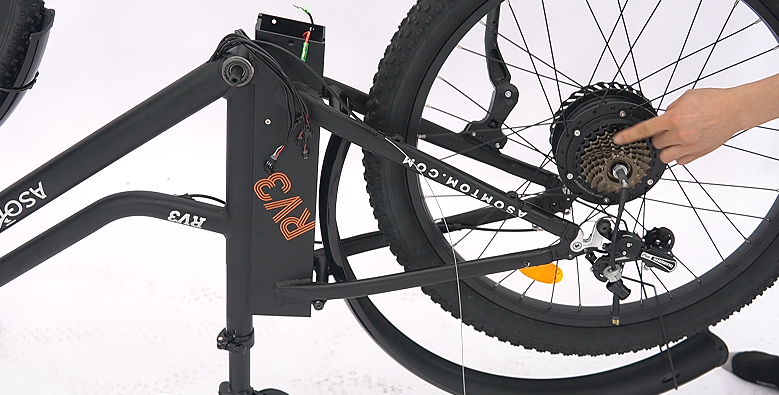

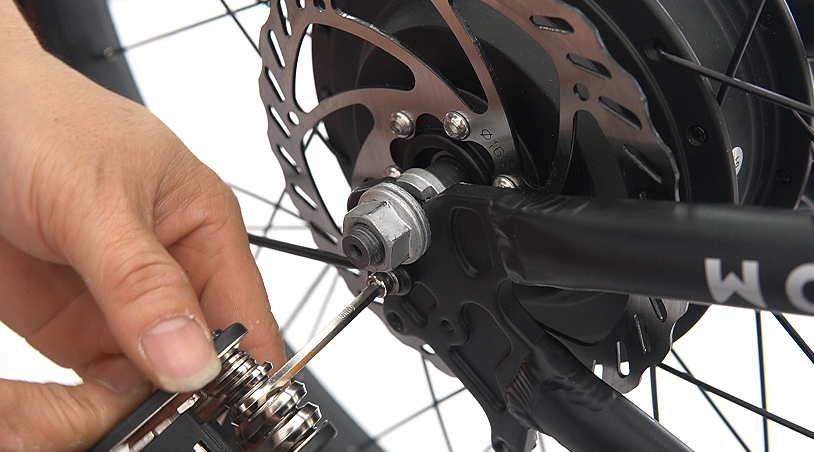

Step 9: Unscrew the screw on the left side bracket of the rear fender and remove the rear wheel.

Step 10: Unscrew the screws on the upper and lower parts of the rear fender and remove it.

Step 11: Install the new rear fender and tighten the screws on the upper and lower parts.

Step 12: Install the rear wheel.

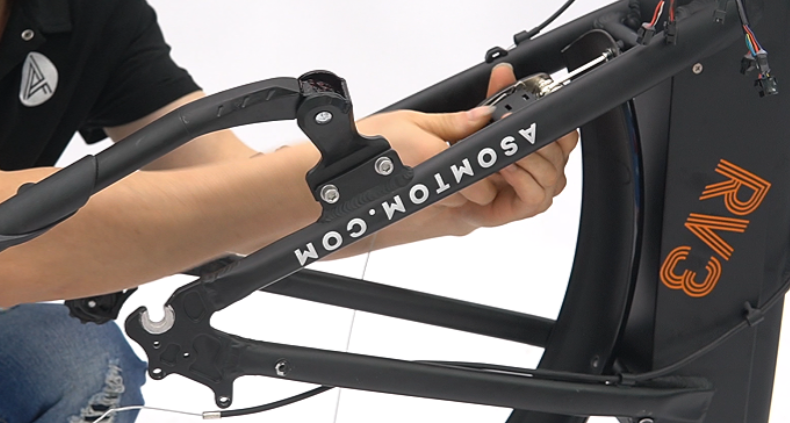

Step 13: Install the protective frame and simultaneously install the right bracket of the rear fender.

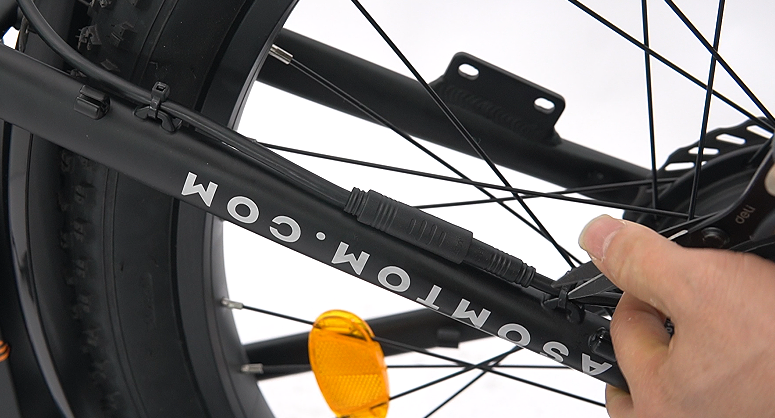

Step 14:Connect the motor wires and secure them with zip ties.
